Anti-aging step tile or glazed tile rolling forming machine
Anti-aging step tile or glazed tile rolling forming machine is designed to produced the metal step tiles or glaze tiles, which are widely used to produce mainly metal roofing and wall cladding sheets, and the most popular metal sheet roll forming machines in the markets can be found here. Our roofing sheet roll forming machine have muti-function,not only can produce normal PPGI and color steel material,also can use for composite material.

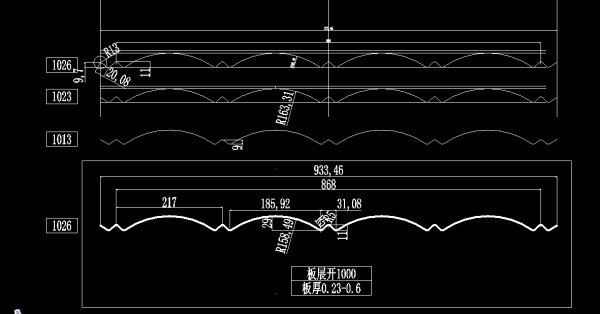

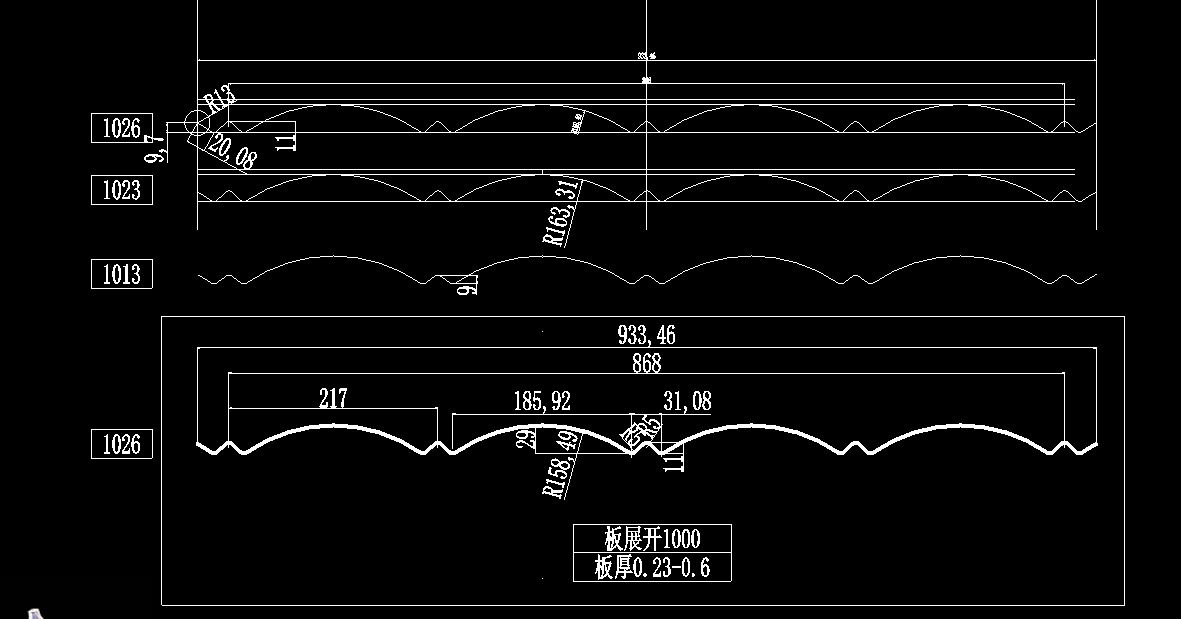

Here we take a random popular design in South American for your reference:

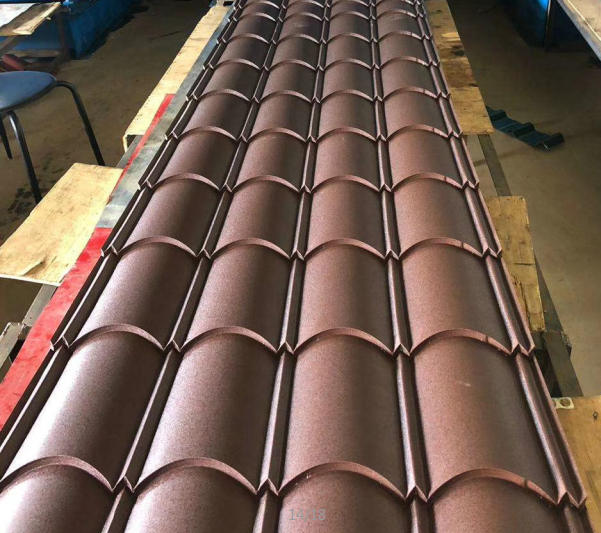

Anti-aging step tile or glazed tile rolling forming machine can rollform aluminium or steel metro copo roof step tiles. After roll formed by this corrugation machine, the surface of finished metecoppo steptiles are very smooth and beautiful without any scratch on the surface of metro cop step tile profile sheets. The metcopo step tile roof sheet production line is with fully automatic control system with PLC from Japan. The parameters of length, quantity of sheets is adjustable.
Here are some parameters for your reference:
Technical Information
| Items | Anti-aging step tile or glazed tile rolling forming machine | |
| Material | Thickness | 0.4-0.6mm |
| Coil width | 1200mm | |
| Yield Strength | 235 Mpa | |
| Material | Aluminium Coils, PPGI, Color Steel, GI. | |
| Decoiler / Uncoiler | Uncoiler Type | Manual or Hydraulic or Auto Type |
| Coil Width | Max. 1250mm | |
| I.D | 508-610mm | |
| O.D | Max. 1500mm | |
| Flat Sheet Rolling Mill | Forming Stations | 14 Stations ( Depend on Profiles ) |
| Roller material | 45# steel coated with 0.05mm hard chrome | |
| Diameter of shaft | 72mm | |
| Shaft material | High grade 45# steel | |
| Drive type | Chains transmission | |
| Forming speed | 4-6m/min | |
| Main power | 7.5KW | |
| Step Pressing Device | Pressing Type | Hydraulic type pressing |
| Pressing Mould | Cr12 Mov steel, HRC58-62 | |
| Automatic Cutting Device | Cutting type | Hydraulic cutting |
| Cutting Die Material | Cr12Mov steel, HRC58-62 | |
| Cutting Tolerance | 10m+/-1.5mm | |
| Encoder | OMRON Brand | |
| PLC Electrical Control Board | PLC | Mitsubishi from Japan |
| Inverter | Mitsubishi from Japan | |
| Touch screen | Mitsubishi from Japan | |
| Operation type | Touching screen & Buttons | |
| Hydraulic Station | Hydraulic station | Famous Chinese brand |
| Hydraulic Power | 5.5KW | |
| Runout Tables | Table type | Simple unpowered type |
| Function | To support the finished panels | |

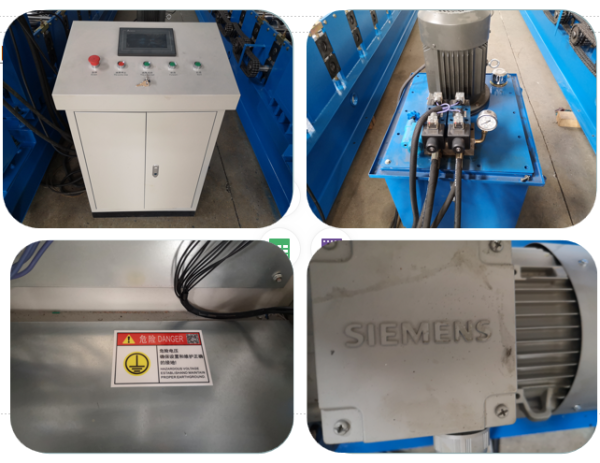

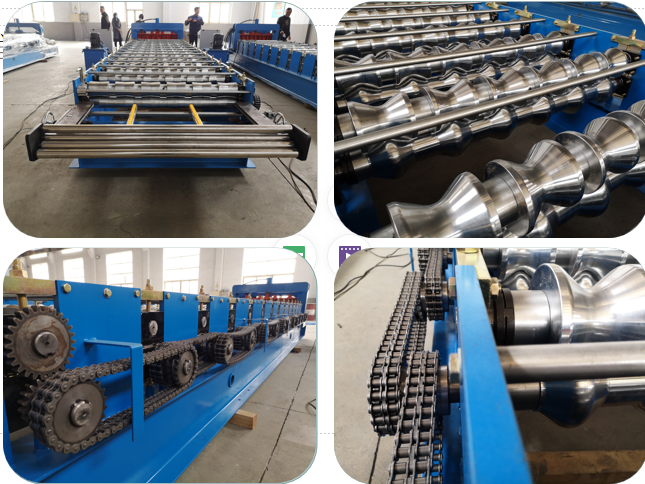

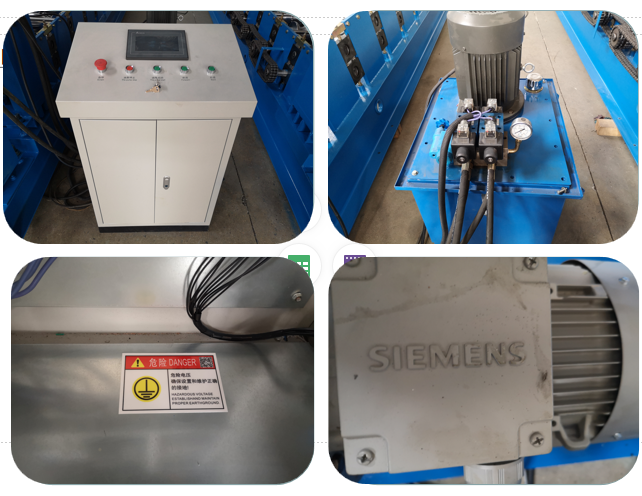

Here are more details of the machine for your reference:

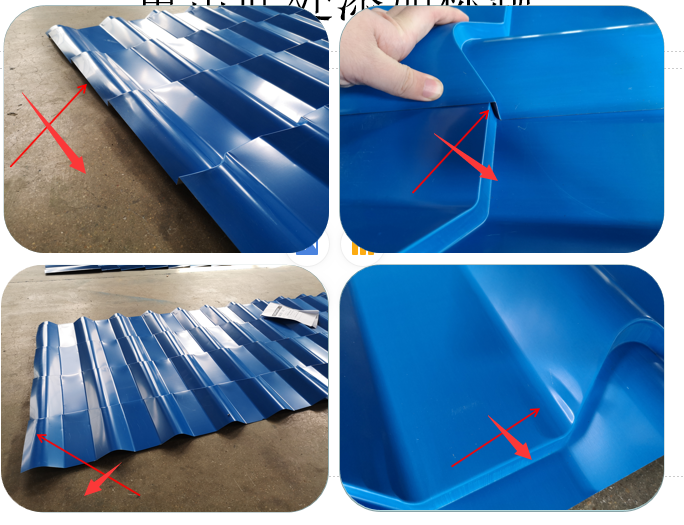

Here we check some pictures to check, if the machine not good, which kind of product will make:
So for the Anti-aging step tile or glazed tile rolling forming machine, quality is very important, or else you make the machine wasting your coil.
