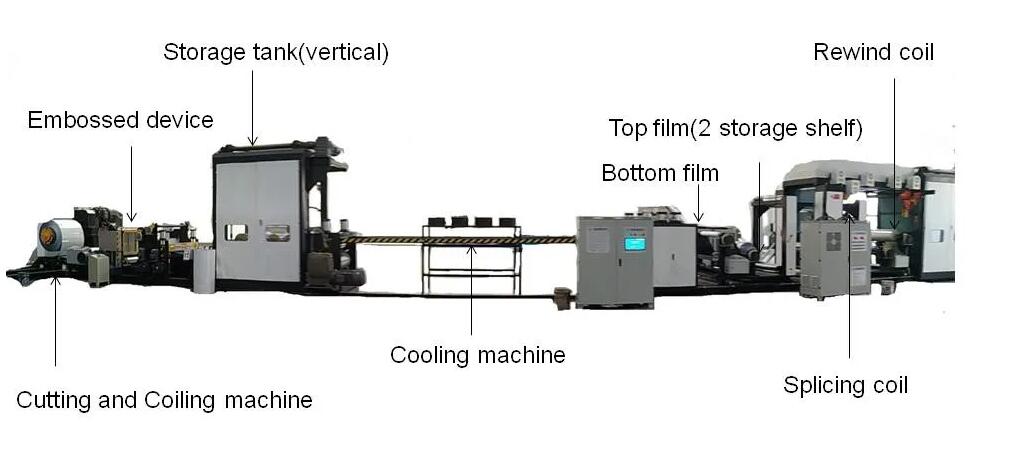

Hot Melt Laminating Machine For Metal Sheet Film
This producing line for making the metal filmed PE/Nano/leather etc composite coils,with economical type , cost effective , compact structure .
Internal electromaganetic heating roller , accurate control:±1ºC, low energy , no pollution , cost saving , zero maintenance.
More Detail
PRODUCT SPECIFICATIONS
Model | ZTRFM-H01 | |||
Basic Material Thickness | 0.18-0.5mm | |||
Specification | L18-20m*W6.3m*H3.4m | |||
Input Power | 380V-250KW-150KW | |||
Vehicle Speed | 0-60m/min | |||
Equipment table size | ≤1300mm(Coil Width:500-1150mm) | |||
Vertical Laminating | Holt Melt Laminating Machine | |||

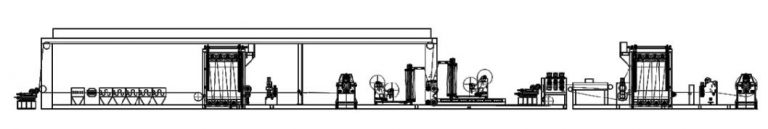

Lamination Machine | ||||
Laminator | ||||

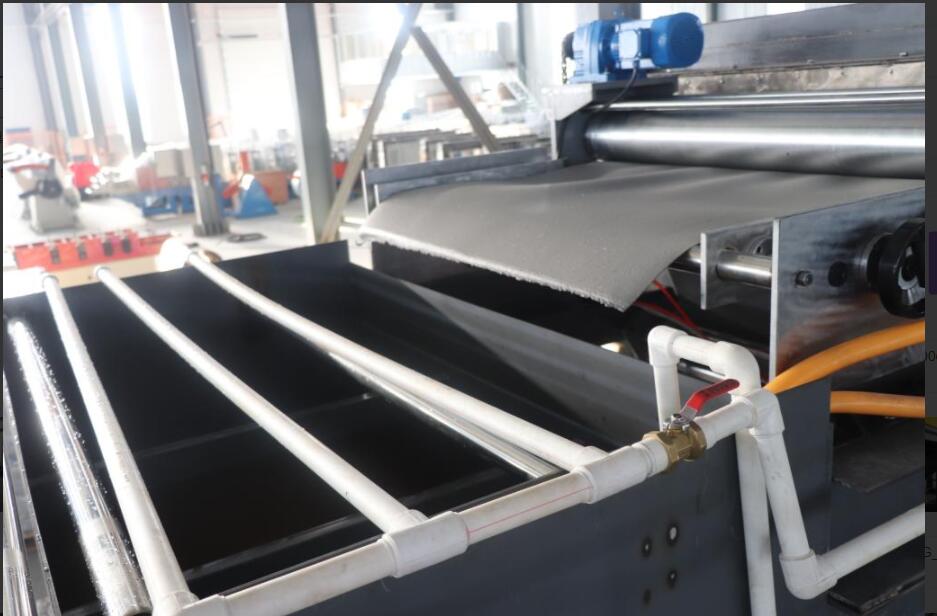

Product Process | ||||
Adopt plastic film (PET,PVC,PVDF,ASA) combined with metal plate through hot melting , which has solved the corrosivity of metal plate and metal container , both has the decorating , barrier of plastic film and the malleability ,figurability of metal sheet. Metal plate : galvanized sheet , stainless steel sheet , cold rolled sheet , aluminum sheet. Plastic Film: PET,PVC,PVCF,ASA etc. Film Color: RAL color/Pantone color; wood grain , marble grain , brick grain , stone grain , flower pattern , brushed , embossed. | ||||
Production product applications
features of finished products | |
material | composite panels:metal material coil /sheet as basic material,and can filmed leathers,PE,PVC,or Nano,etc |
hot sale layers | 2 layers(metal coil filmed PE or leather for anti-condensation roof sheet) |
6 or 8 layers: Anti-aging transparent layer-aluminum foil-polymer film (substrate)-polymer film-foam layer-polymer film-aluminum foil-anti-corrosion layer | |
advantages | anti-condensation/raindrop/waterproof |
sound insulation | |
heat insulation/thermal insulation | |
acid resistant/acid-proof | |
Alkali resistance | |

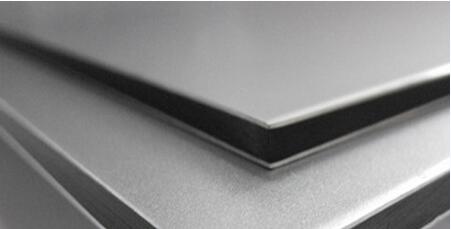

2 layer type finished products showing
metal material filmed PE or leather,with anti-condesation and thermal insulation,sound insulation function.
Good usage for factory ,warehouse,farm, roof sheet material
6 or 8 layers type finished products showing
Anti-aging transparent layer-aluminum foil-polymer film (substrate)-polymer film-foam layer-polymer film-aluminum
foil-anti-corrosion layer,compared to the 2 layer type,can anti-corrosion.
foil-anti-corrosion layer,compared to the 2 layer type,can anti-corrosion.
Good usage for chemistry lab.
